Profile Options

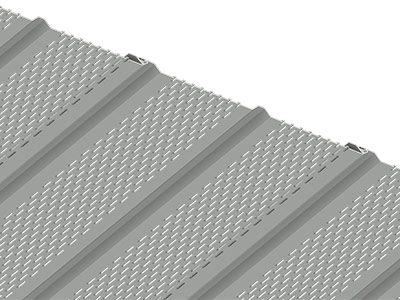

MPV

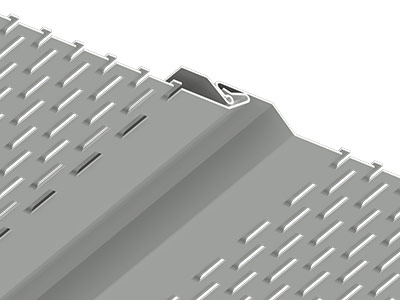

MPV Interlock
Wind-Lok Soffit | MPS, MPV

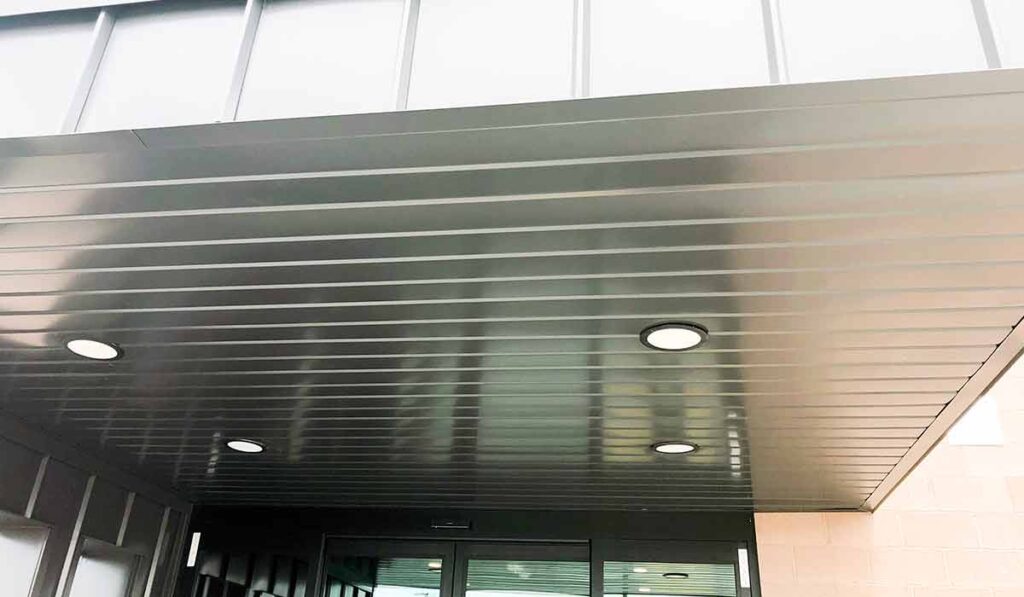

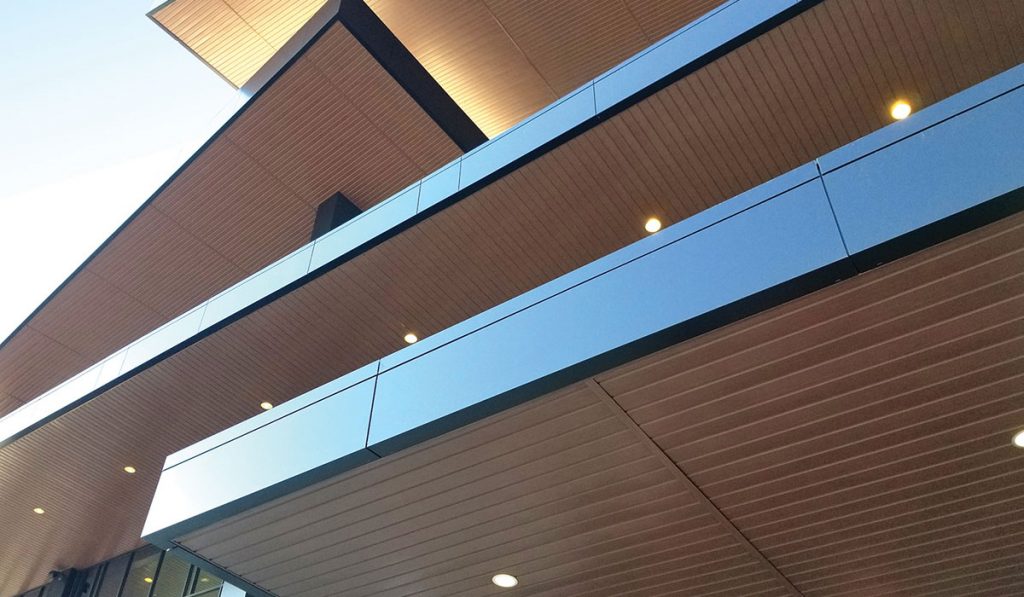

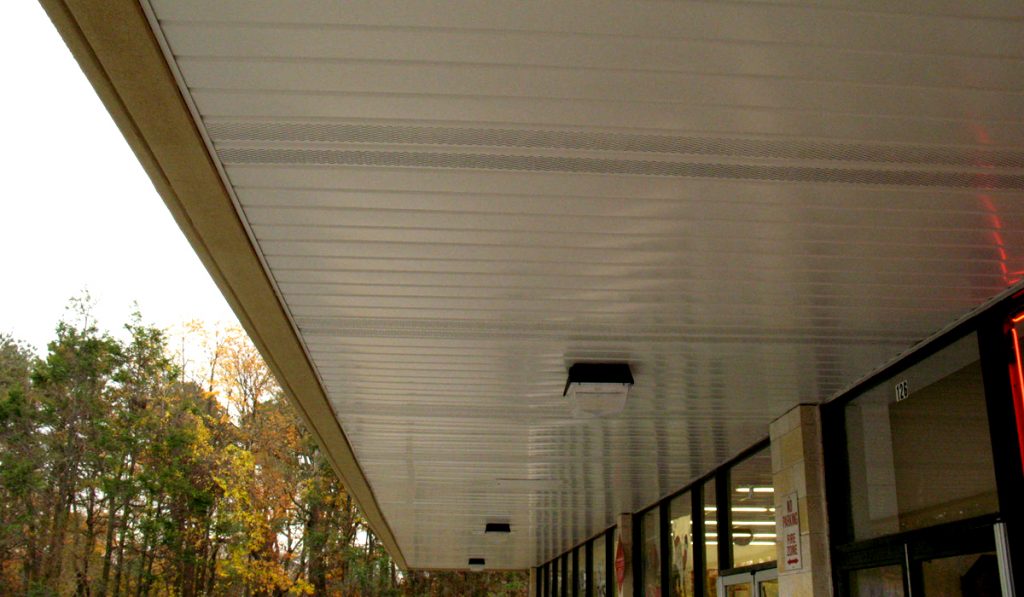

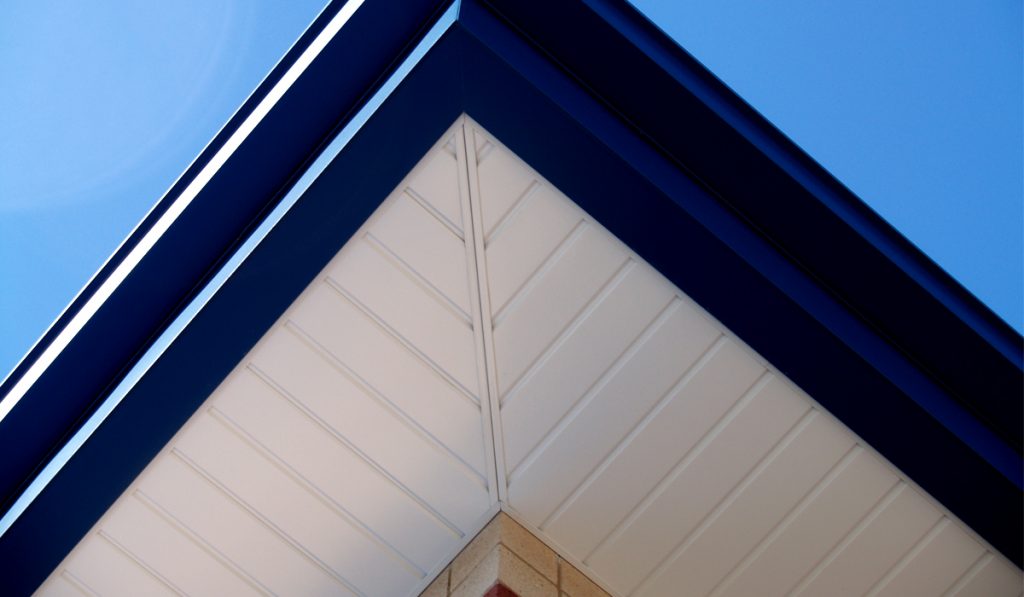

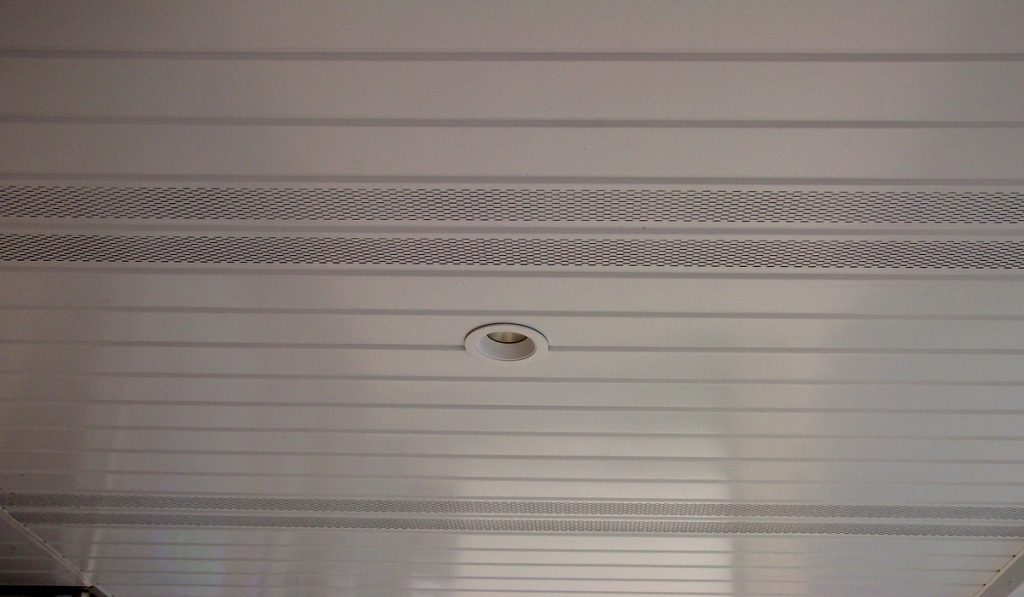

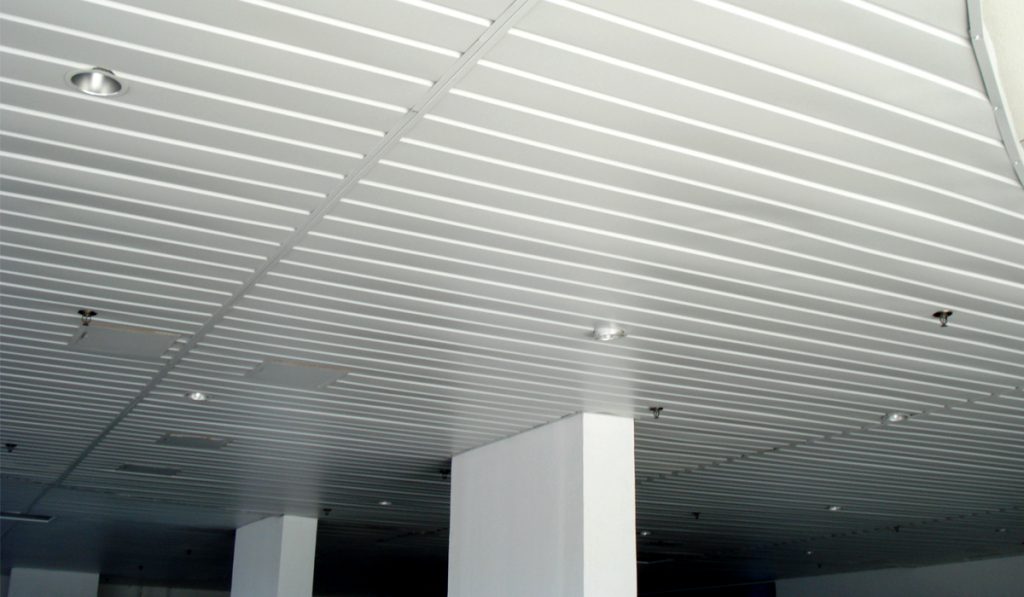

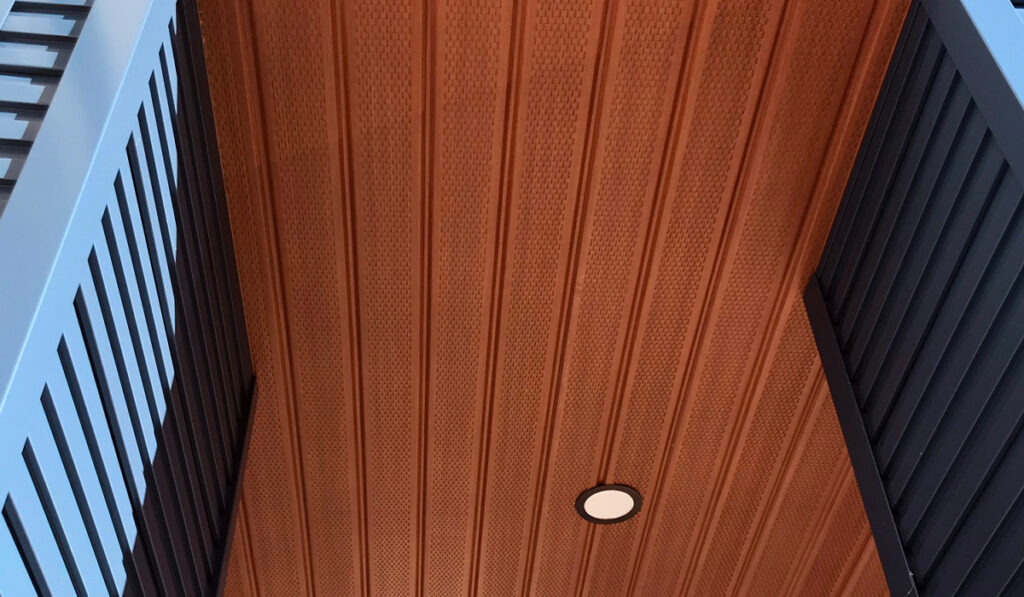

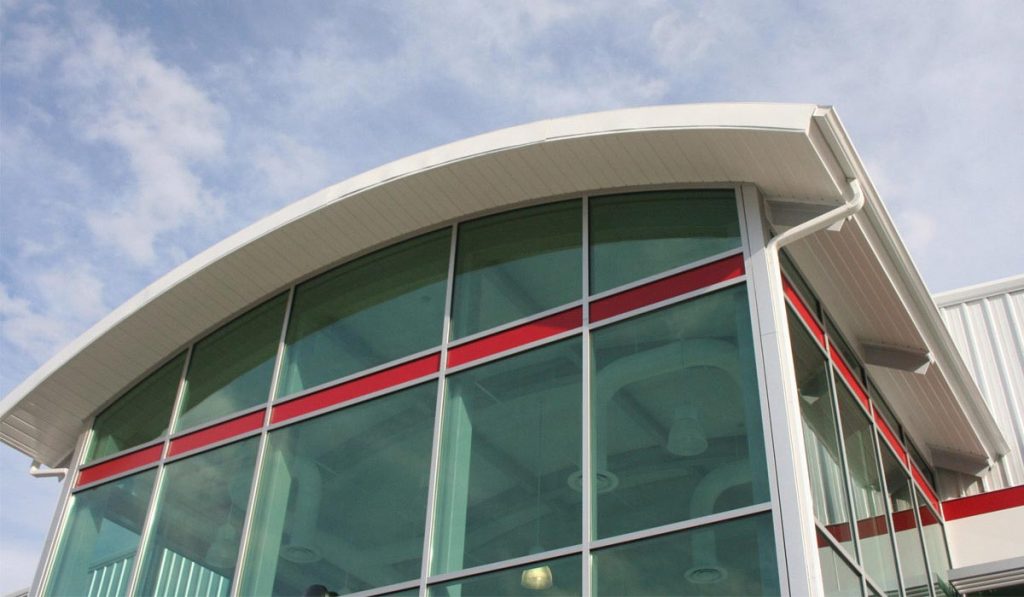

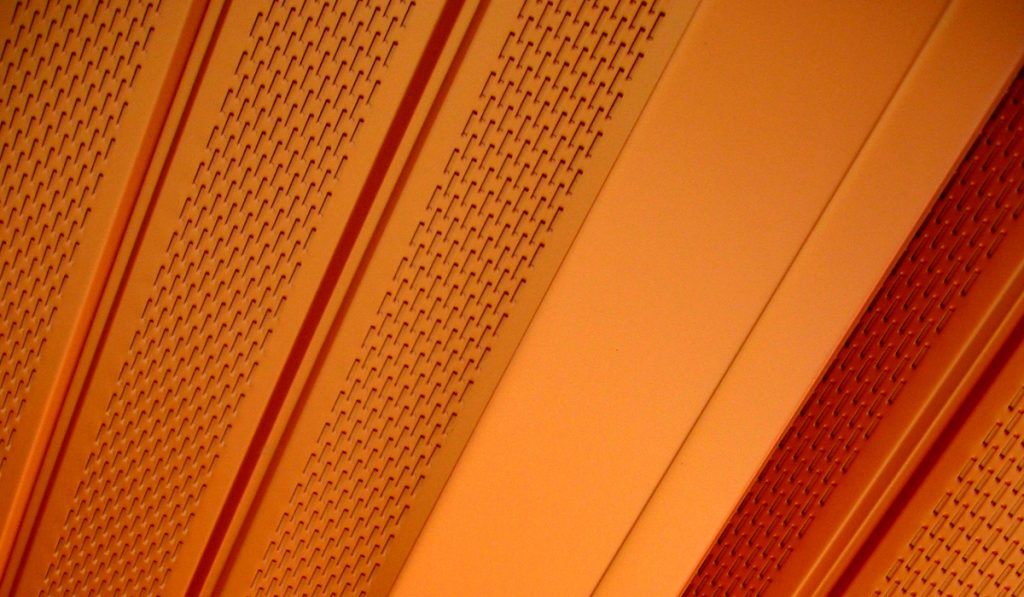

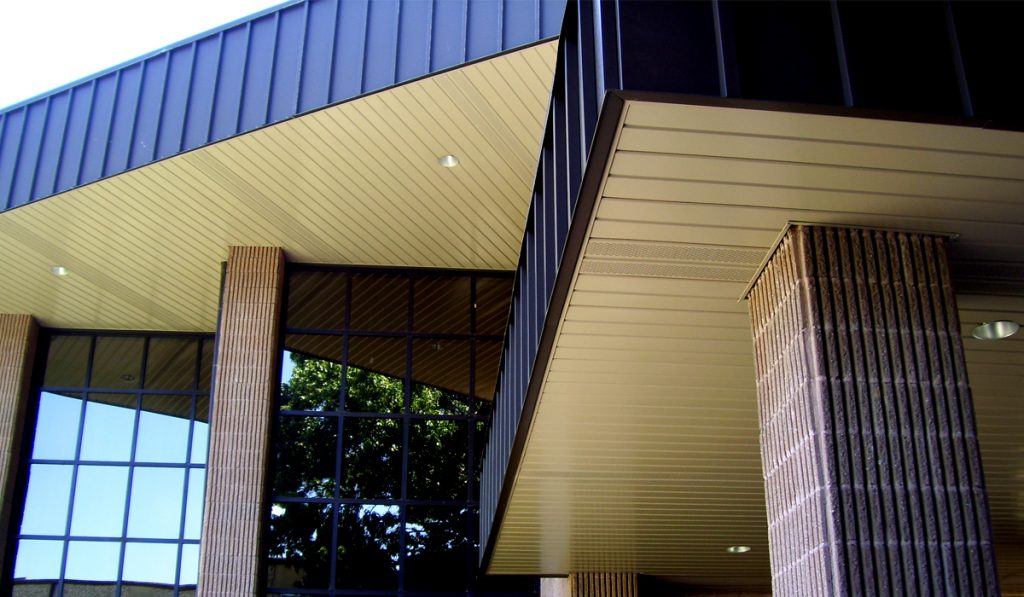

Wind-Lok® Soffit Panel system is a V-groove designed panel with the “hook, pull and fasten” interlock design. This design allows for one of the strongest panel interlocks on the market today and allows for quick, easy and permanent installations with concealed fasteners. Vented Wind-Lok™ Soffit Panels are lanced, which have open space for airflow at both sides of rectangular protrusions allowing for air circulation and reducing condensation. Panels may be solid or vented. Typical applications for Wind-Lok™ are wide overhangs and ceilings on porches, breezeways, carports and patios.
Florida Building Product Approval: FL 16083.1

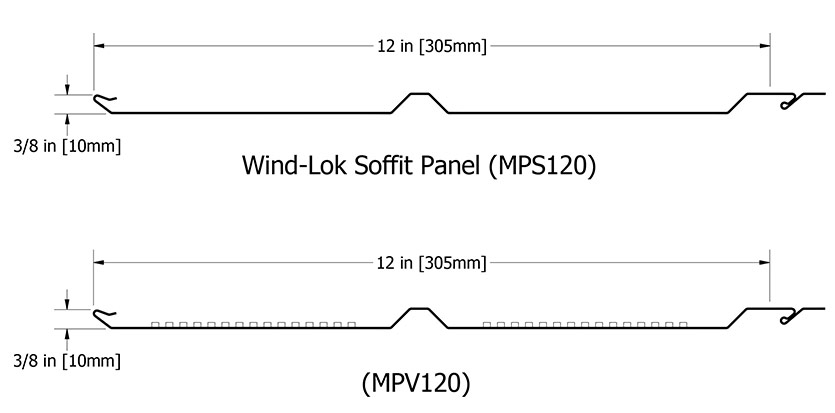

MPS120
MPV120
.019, .024, .032 aluminum
12″
Standard length is 12’-0”
Special lengths are available with a 8’-0” minimum, maximum 25’-0”
⅜”
Smooth
Stucco Embossed
Wood Grain Embossed (.032 aluminum)
Lanced
70% PVDF
FL 16083.1
Choice of over 40 stock colors in .032 aluminum
.019, .024 aluminum available in Bone White only
Custom colors available*
Clear Satin
Dark Bronze
(MPS120 only)
Details provided allow for typical expansion and contraction values of the metal cladding materials as provided by ATAS International, Inc only. Allowance must be made for additional sub-structure movement based upon materials used and overall project design.
